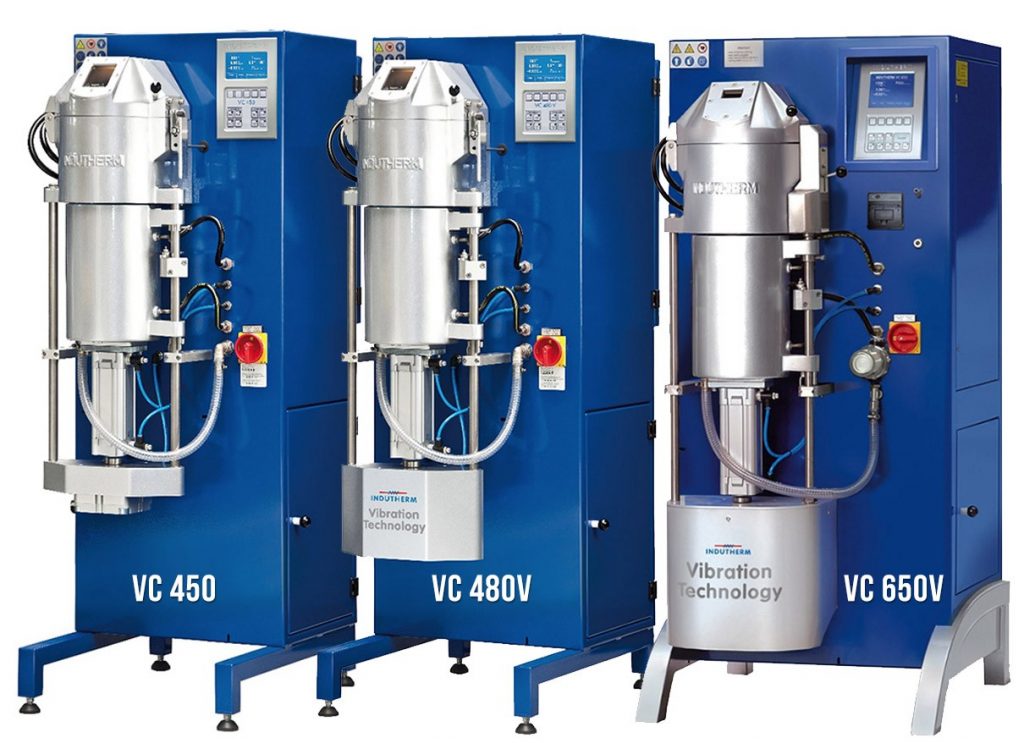

Indutherm Fully Automatic Vacuum Casting Machine (VC 450, 480V, 650V)

Indutherm Fully Automatic Vacuum Casting Machine (VC 450, 480V, 650V)

A thoroughly thought-through concept with the finest details forms the basis of the technological advances made in our VC machines guaranteeing optimal casting results whatever class of machine you opt for. Automatic inert gas or vacuum in the melting chamber to avoid undesired oxidization or the formation of inclusions during melting, particularly important when casting silver or red gold. The special “oxidation-reduced casting“ system eliminates the danger of oxidation while the flask is cooling down.

Get a Quote

Overview

Turbo Pressure

A feature that optimizes the casting of very small and filigree objects. For the production of jewelry it guarantees perfect results when casting with stones. Turbo Pressure allows a precisely defined pressure to be achieved rapidly. For all program-controlled VC models, depending on the selected program the Turbo Pressure will start automatically exactly at the required time.

Advanced User Control

The integrated data printer (optional for VC 500) records the para meters of every casting (ISO 9001). All machines with an induction generator can be remotely serviced via a GSM modem. The GSM modem enables Indutherm to remotely monitor and, if necessary, modify important parameters. This allows many potential operational disturbances to be detected in advance and hence avoided. If the machine isn’t working properly or a difficult casting procedure is being carried out, we can remotely provide quick and straight-forward assistance.

Highest levels of safety for certified production

The digital or program control of our machines means we can ensure a high level of safety i.e. we can guarantee an ISO certified casting process. Until recently flasks with incorrect or different temperatures were a safety risk. During casting of very small or delicate parts the temperature of the flask is of upmost importance. The measurement of the flask temperature (standard for machines from VC 500D onwards) is an important feature with regards to safety. The temperature of the flask can be monitored to within one degree accuracy.

Specification

VC450
(78-3300)

VC480V
(78-3400)

VC650V
(78-4000)
Power max. / electrical connection (max. temp.) 4.5kW 3x400V (1400º C) 8 kW 3x400V (1600º C) 12 kW 3x400V (1700º C)
Crucible Volume 170 ccm = 2.5kg Au 18 ct* 170 ccm = 2.5kg Au 18 ct* 245 ccm = 3.6 kg Au 18 ct*
optional: 386 ccm = 5.8 kg Au 18 ct*
Flasks 130 mm / 260 mm h 130 mm / 260 mm h 130 mm / 260 mm h
optional: 160 mm / 400 mm h
Vibration Technology – Standard Standard
Pneumatic Bell Lock Standard Standard Standard
Maximum Pressure 1.5 bar 1.5 bar 3 bar
Programs 20 100 100
Program Control by LCD-display, full text readout by LCD-display, full text readout by LCD-display, full text readout
Dual Temp. Control Optional Optional Standard
Flask Temp. Measurement – – Standard
Automatic Flask & Chamber Lift Standard Standard Standard
Variable Vacuum in Flask Chamber – Standard Standard
Turbo Pressure Plus System – Standard Standard
Turbulence Reduction Software Standard Standard Standard
RS 232, Diagnostic System Standard Standard Standard
Data Printer Optional Optional Standard
GSM Modem for Remote Service Optional Optional Standard
Sintering Kit (for diffusion bonding) Optional Optional Optional
Granulation Tank Optional Optional Optional
