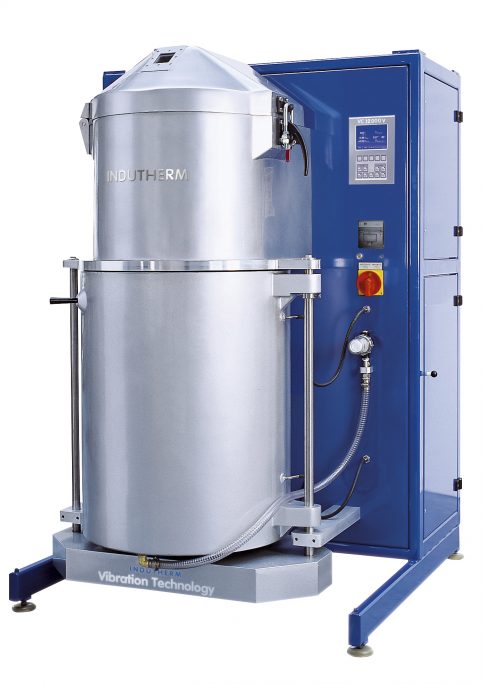

Indutherm VC 12000V
Indutherm’s large vacuum pressure casting machines are mostly used for precise castings in aluminum alloys or for art and crafts objects in brass or bronze. They are always the first choice for parts with complicated geometry or when the number of pieces is not large enough for die-cast production.
Features
- Easy handling, top results.
- Short training period.
- Simple to use control system.
- Short crucible/stopper rod exchange time.
- High value-performance ratio.
- Data recording is available via printer and RS 232-interface.
Applications
- Automotive and component industries
- Rapid prototyping
- Orthopedic and medicine technologies
- Machinery construction
- Tool-making
- Sculptures
Capacity and power for large scale projects
Indutherm’s large vacuum pressure casting machines are mostly used for precise castings in aluminum alloys or for art and crafts objects in brass or bronze. They are always the first choice for parts with complicated geometry or when the number of pieces is not large enough for die-cast production.
VC 1000 V, 3000 V, and 12000 V offer the best pre-conditions for high-quality castings in aluminum: the hydrogen content of aluminum alloys may be adjusted by regulating the vacuum during melting. This way, foaming of molten metal can be avoided without any melt additives. Overpressure in the melting chamber during and after casting and simultaneous vacuum in the flask chamber optimizes form filling, especially in filigree or thin-walled areas.
From 2018 on, all our large VC machines are equipped with a program control system with 100 programs. The control panel with full-text LCD display enables the user to set all programs and parameters very easy and convenient. VC 1000 V and VC 3000 V use the vibration technology for improved casting results especially concerning form filling and further processing properties.
Performance
|
Power Max/ Electrical Connection
|
40 Kw 3×400 V |
|---|---|
|
maximum Temperature
|
1200C |
Capacity
|
Crucible Volume
|
12,000 ccm = 30 Kg Al |
|---|---|
|
For Use Of Flask Up to
|
600 mm / 800 mm h |
Handling + Control
|
20 Temperature Programs
|
Standard Equipment |
|---|---|
|
Program Control (100 Programs)
|
Standard Equipment -VC 12000V |
|
Dual Temperature Control
|
Standard Equipment |
|
Flask Temperature Measurement
|
Standard Equipment |
Quality Management
|
RS 232, Diagnostic System
|
Standard Equipment |
|---|---|
|
Data Printer
|
Standard Equipment |
|
GSM modem for remote service
|
Optional |
Brochures
