One of the most recent developments of ElettroLaser, the Master S inherits all the product innovations of its predecessors.
It was developed mainly to satisfy the needs of combining high working power with long lamp life.
Thanks to the new lamp and innovative technology that offers a digital setting of the powers in play, ElettroLaser now produces the best laser on the market with very low impact in terms of maintenance.

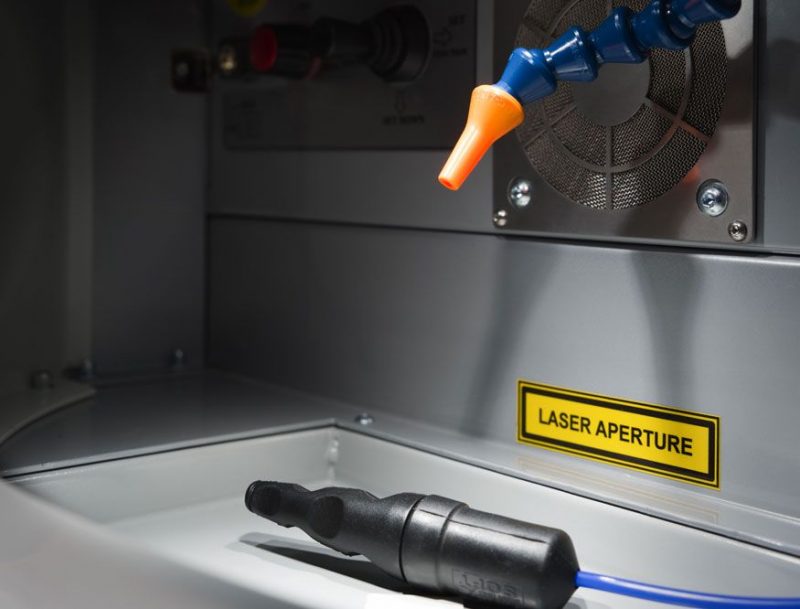

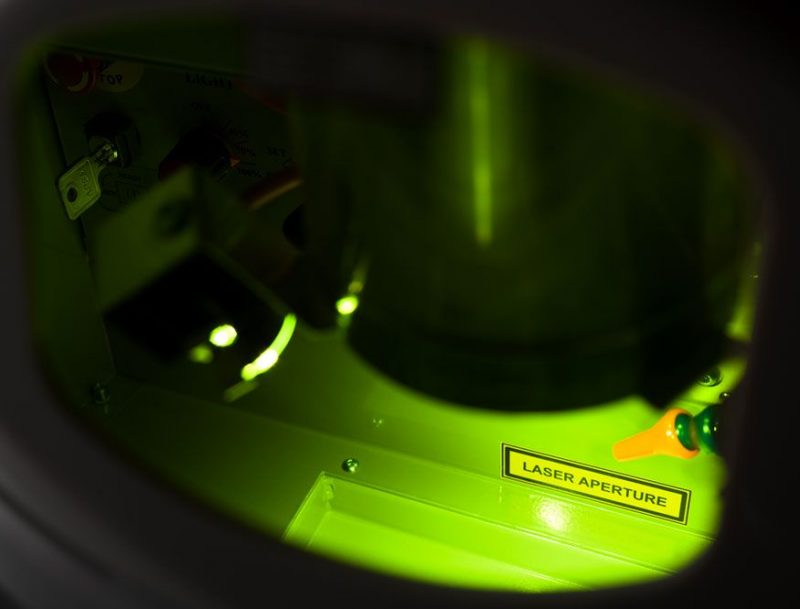

A large welding chamber, integrated webcam with a display of the operations directly on the 7” LCD display, WI-FI connection for entry of the machine in a network, or parametrization of the machine by remote control complete this picture of an innovative welding laser.
|MASTER S 80||MASTER S 100||MASTER S 130|
|LASER SOURCE AND WAVE LENGTH||Nd: YAG 1064 nm|
|AVERAGE POWER||75 W||95 W||100 W|
|PEAK POWER||5 kW||5 kW||6,5 kW|
|ENERGY||80 J||100 J||130 J|
|IMPULSE TIME||0,1 to 16 ms||0,1 to 20 ms||0,1 to 20 ms|
|PULSE FREQUENCY||0,5 to 30 Hz|
|SPOT DIAMETER||0,2 to 2,0 mm|
|SPOT SETTING||Motorized, 30 positions|
|WAVE PROGRAMS||Pulse Shaping 6 preset|
|MEMORIES CELL STORED||100|
|INTERNAL CHAMBER CONTROL||Joystick|
|EXTERNAL CONTROL||7” Color Touch Screen|
|INPUT POWER||110V or 230 V AC, 50/60 Hz (Please specify voltage when ordering)|
