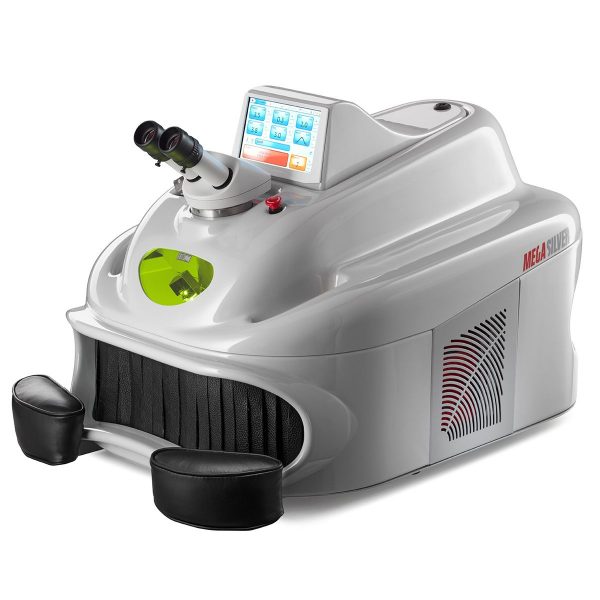

Evolution of the MegaHIT, the new Mega Silver inherits all the best features of this family, such as the wide welding chamber and double cooling system.
The real innovation in this machine is the new cavity which, inserted in the innovative ElettroLaser resonator, allows the generation of a special laser beam, qualitatively superior to any other lasers present on the market. Thanks to this laser beam, the shot becomes homogeneous and the energy is successfully distributed throughout the affected area, improving the weld penetration into the workpiece. This allows easier distribution of the filler material and a better surface finishing of the welding.
Despite it has been designed primarily for silver or highly reflective materials, actually the Mega Silver is optimal for any use. Welding on gold, palladium, steel, titanium and other alloys, will look very different.
Great for: welding titanium, gold, silver, palladium, repairing casting porosity and cracks, repair antique jewelry, eyewear, watches, dental and medical applications such as bridges, crowns, implants, mold and die repairs and many other applications.
|MEGA SILVER 150||MEGA SILVER 180|
|LASER SOURCE AND WAVE LENGTH||Nd: YAG 1064 nm|
|AVERAGE POWER||100 W|
|PEAK POWER||7,5 kW||9 kW|
|ENERGY||150 J||180 J|
|IMPULSE TIME||0,1 to 20 ms|
|PULSE FREQUENCY||0,5 to 30 Hz|
|SPOT DIAMETER||0,3 to 2,0 mm|
|SPOT SETTING||Motorized, 30 positions|
|WAVE PROGRAMS||Pulse Shaping 6 preset|
|MEMORIES CELL STORED||100|
|INTERNAL CHAMBER CONTROL||Joystick|
|EXTERNAL CONTROL||7” Color Touch Screen|
|INPUT POWER||110V or 230 V AC, 50/60 Hz (Please specify voltage when ordering)|
