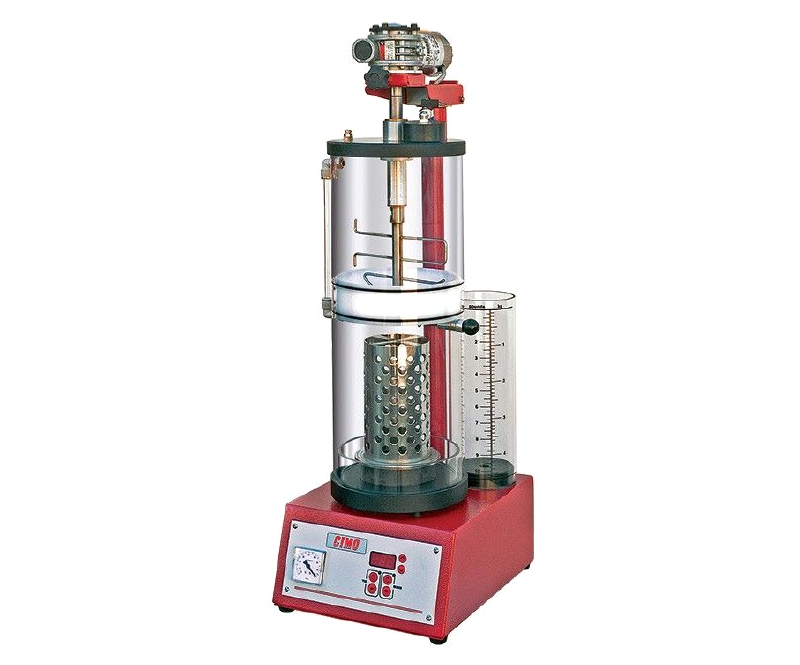

St. Louis #92 4-Kg Vacuum Investment Mixing Machine (Platinum)
- Model : 92-4
- Powder Capacity : 4 Kg
- Dimensions : 300mm x 350mm
- Weight : 22 Kg
- Height : 950mm
- Voltage : 220V
- Flask Max Height : 200mm
- Flask Plate Diameter : 150mm
- Motor Size : 90W
Tabletop unit, specially designed for platinum investment mixing
The 90W model has a heavy-duty motor designed for gold investment and for mixing two part platinum investment powders as well.
The most important feature of this unit is that you are mixing and pouring investment under a controlled vacuum environment.
With the St. Louis Mixers, you can automatically mix and pour your investment in an enclosed see through mixing chamber. A very important feature of these units are, you are mixing and pouring investment under a controlled vacuum environment with vibration. This is a real time saver as you will not have to separate mixing, pouring and vacuuming operations. Since it is user friendly, anyone can be trained in a few minutes on how to operate these units.
Simply place your flasks in the lower flask chamber below the investment mixing chamber. Add the correct amount of investment based on your flask sizes, start the vacuum pump (not included), open the water valve from the graduated water cylinder, and then start the adjustable speed mixing motor and set your timer. For multiple flasks units, you can electronically turn the table to align the next flask under the pouring valve. As the investment fills the flasks, turn on the adjustable vibration table under the flasks and you are done!<
*Larger Models Available
