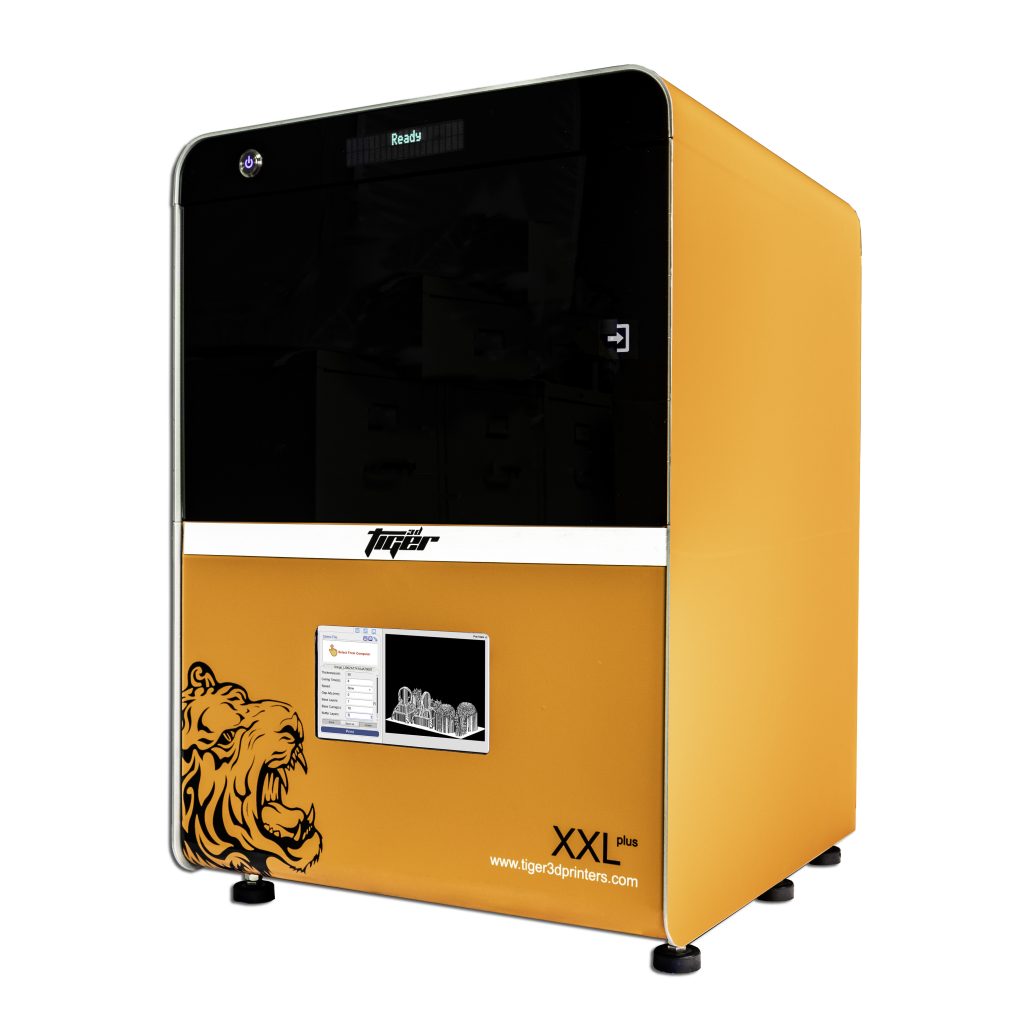

Tiger3D XXL - Plus
New! Maximum Capacity
Product SKU: 78-5150
Meet the largest and highest resolution professional desktop printer ever made. Its enormous build platform boosts up printing capacity with outstanding resolution. Tiger3D XXL empowers the user to get the best of two worlds: Size and resolution. Build Area: 150 X 84.4 x 120 mm. 78 microns.
- Bottle of Burgundy Resin
- Set of Scrapers
- Model Removal Tool
- Printing Tank with UV Safe Resin Storage Box
- Picker (build plate)
- AC Adapter Power Cord and Ethernet Cable
- UV Curing Lamp
- 1 Year Warranty
- Unlimited Online support
- Remote Install and Training Service
- Unlimited Software Licenses
- Cam Solution for Slicing and Support Generation
High productivity, High Resolution
Offering extreme high resolution the Tiger3D XXL – Plus can build up to 12 rings in 3 1/2 hours.

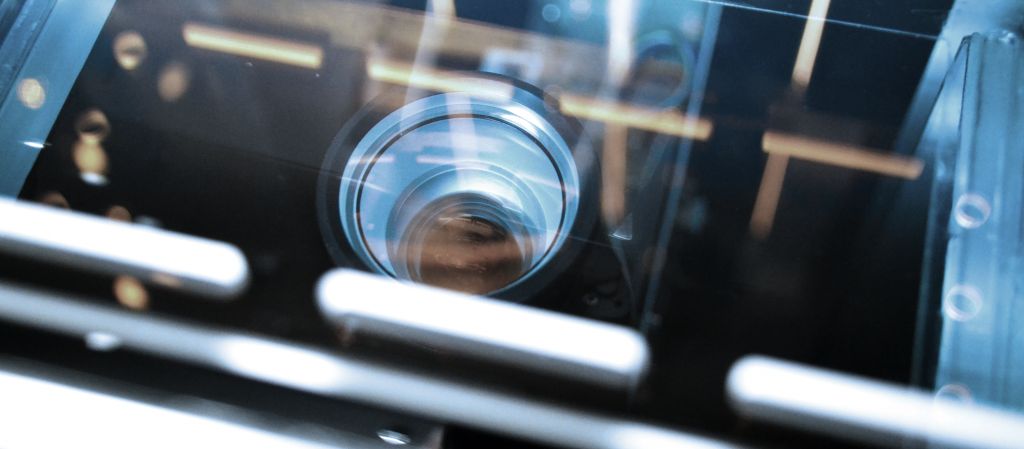

The most advanced high definition DLP 3D printer in the industry.

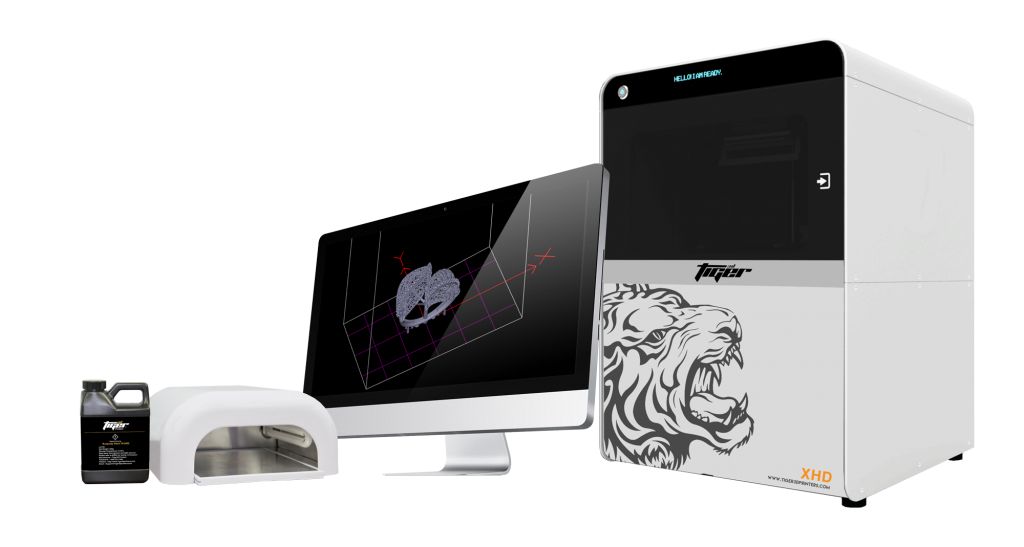

A Complete 3D Production Solution
Tiger3D XXL – Plus comes complete with everything you need to start 3D printing.
|Area||150 x 84.4 x 120|
|Ideal Temperature||50 to 86°F|
|Humidity||40% to 60%|
|Operating System||Windows 7, Windows 8, Windows 10|
|Network Browser||Google Chrome|
|File Input||.STL, .SLC, .ZIP(PNG), .CWS, .WRK|
|Printer Size||17 x 17 x 23 1/2″ 83-lbs|
|Interface||Ethernet Connection, USB (Direct Printing)|
|Power Input||100-240V AC, 2A 50/60HZ|
|Packaged Size & Weight||32 x 32 x 37 1/2″ (Including Packing) 127.60 lbs|
Tiger3D Burgundy Resin
Precious Metal Applications
Product SKU: 78-5002
Tiger 3D Burgundy is a Photopolymer resin designed for precious metal applications. Its unique and special formulation allows clean burn-out and no ash content. This resin is available in 500 gram bottles.
Tiger3D Orange Resin
Precious Metal & Dental Applications
Product SKU: 78-5003
Tiger 3D Orange is a Photopolymer resin designed for precious metal and dental applications. Its unique and special formulation allows clean burn-out and no ash content. This resin is available in 250 gram bottles.
Precious Metal & Dental Applications
Product SKU: 78-5003-R1
Tiger3d Smart-Res is a Photopolymer resin suitable for clean burn-out process. Smart-Res is the ideal choice for printing precious metal patterns and dental models that are used in laboratories. Smart-Res changes its color to indicate a complete polymerization. This unique feature makes it the best choice for precious metal fabricators and laboratories. Precision in construction, feel and stability meet the high demands of model production. This resin is sold in in qty of 1 bottle of 500 grams.
Tiger3D Blue Resin
R&D Master Prototype Conceptional
Product SKU: 78-5004
Tiger 3D Blue is a Photopolymer resin suitable for engineering and rapid prototyping when 3D printing. This resin is available in 500 gram bottles.
Tiger XXL Teflon Tank
Product SKU: 78-5005-XXL
This Teflon tank with box can be used on the Tiger XXL printer.
Product SKU: 78-5006
This metal build plate/platform can be used on any of the Tiger3D Series printers. The Tiger 3D Picker is the platform print-outs are built on. It is very important to make sure this platform surface is clean before starting to print.
Product SKU: 78-5007
The Plastic Scraper is used for any of the Tiger3D Series printer tanks.
Tiger XXL Glass Tray Container
Product SKU: 78-5008-XXL
This Glass Tray Container can be used on the Tiger XXL Printer.
Tiger3D UV Curing Lamp
Product SKU: 78-5010
The Tiger3D Printer UV Curing Lamp features an automatic timer allowing you to auto shut the light off after 120 seconds or 180 seconds.
Post-curing is very important in 3D printing, it enables parts to reach the highest possible strength and become more stable. Post-curing is required for a successful burnout with castable 3D prints, and flexible resin doubles its strength with post-curing.
The Tiger3D Printer UV Curing Lamp is a must to successfully produce castable 3D prints.
Tiger3D Clear Resin
Research & Development
Product SKU: 78-5011
Tiger3D Clear is a Photopolymer resin suitable for fabrication of microfluidic devices. The Tiger3D Clear resin has very low viscosity and is like clear water. You can achieve the smallest enclosed micro channels printed at 0.35mm. This resin is available in 500 gram bottles.
Tiger3D Pink Resin
Product SKU: 78-5013
Tiger3D Pink is a photopolymer resin with flexibility characteristics. Ideal for high grade rapid prototyping and provides the structural representation of ABS plastic. Combining the Pink Resin with Tiger3D DLP technology gives you the absolute closest 3D representation of ABS plastic. This resin is sold in in qty of 1 bottle of 250 grams.
