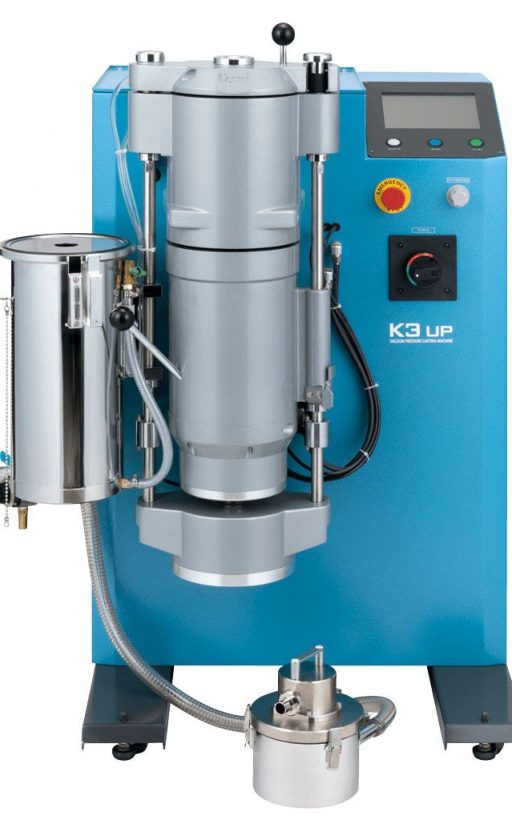

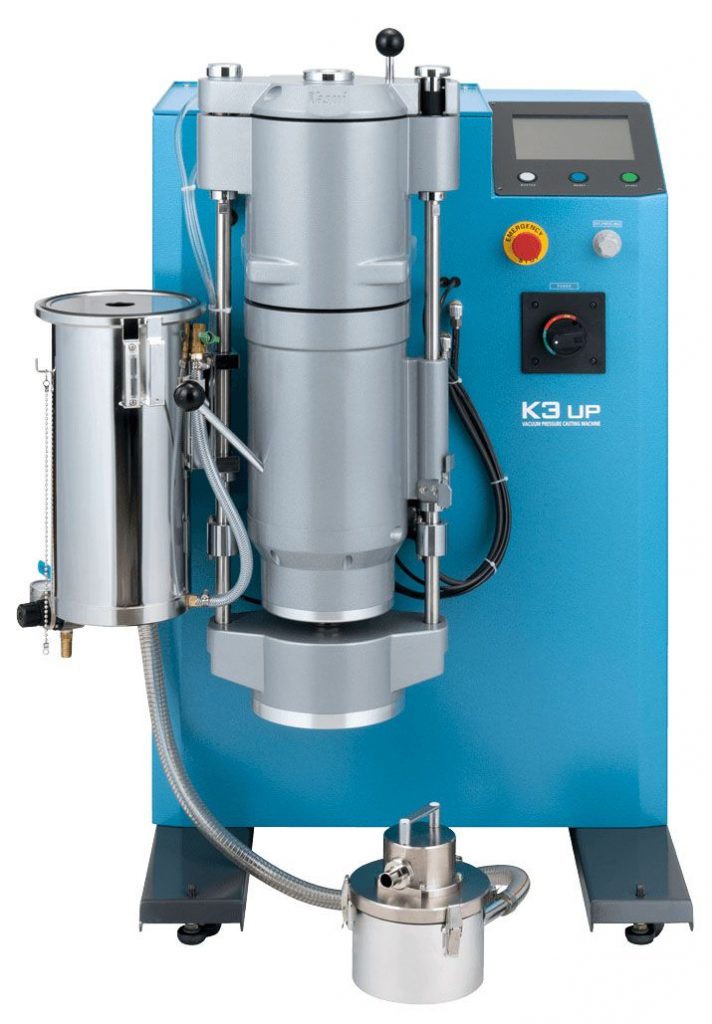

Yasui K3 UP
K3 UP – Save your TIME and GOLD
- Brand : Yasui
- Model : K3 UP
- Power : AC380V, 50/60 Hz, 3 Phase, 5.5kVA
- Maximum Temperature : 1200°C
- Flask Size : 125mm dia. x 230mm (H)
- Vacuum Pressure Casting Machine (max. pressure 0.3MPa)
- Single gas (Argon)
- Induction heating with specifically designed metal stirring function
- Weight: ~190kg
Advantages of K3 UP
K3 UP vacuum pressure machine by YASUI is your next machine to create Quality.
- After mode with out oxidation
- Variable heat for gold loss
- Extra mixing for good segregation of gold
- Good melting speed
- De-Gas – with good filling pieces
- Precise double needle gauge with improved pressure sensing
- Easy to maintain
- Accurate pressure timing
- Self diagnosis – P.I.D auto tuning
- Easy touch operation with useful parameter screen
- Memory of parameter for best casting
TECHNICAL SPECIFICATIONS
| Casting System | Vacuum pressure casting system – max. pressure 0.3MPa |
| Replacing Gas | Single gas (Argon) |
| Program Memory | 100 memories |
| Control | Specially designed micro-processor control. Temperature control by PID with accuracy of +/-2 degrees centrigrade. |
| Heating | Induction heating (with specially designed metal stirring function). |
| Oscillation | 4KW |
| Cooling Water | Tap water direct cooling system more than 3L/min, more than 0.15MPa, less than 30ºC |
| Flask | Flask is elevated by the air cylinder to secure tight |
| Max. Flask Size | 125mm dia. x 230mm (H) |
| Crucible Volume | 90cc |
| Max. Casting Amount (Volume) | 60cc |
| Max. Casting Amount (Weight) | 24K: 1.2Kg, 18K: 0.9Kg, 14K: 840g, 925Ag: 600g |
| Shot Maker | Option (Shot Maker SM3) |
| Data Output | USB memory (2-16GB) |
| Max. Temp | 1200ºC |
| Ultimate Vacuum | 0.1 to 10hPa (depends on the vacuum pump) |
| Vacuum Filter | High mesh |
| Power Source | AC380V +/-10%, 50/60Hz 3 phase, 5.5KVA |
| Net Weight | Approx. 190Kg |
