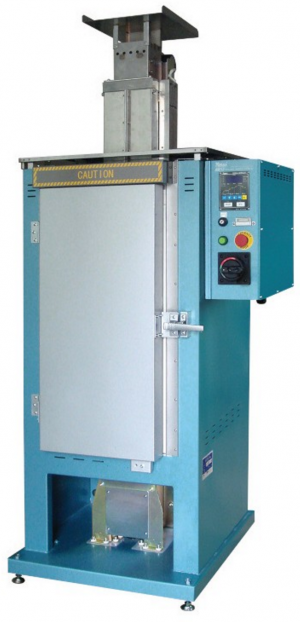

Yasui Rotating Burnout Furnace #13+
(Discontinued, see RBF19)
CLEAN BURNOUT, PRECISE CONTROL AND ECOLOGICAL DESIGN
The Yasui Rotating Burnout series features uniform heat transfer, due to the displacement of air created by the rotating shelves, within the flask chamber.
Accurate temperatures ensure a safe burn-out during stone-in-place casting.
The Variable Power Heating System automatically and precisely maintains set temperatures throughout the cycles, (9 Programs, with 4 Ramps and 4 Holds each). Internal Dewaxing System collects wax outside the flask chamber. The Afterburner device neutralizes all fumes, odors and pollution produced during overnight burn-out cycles. The narrow door design creates minimal heat loss.
Rotating Burnout Furnace #37 (77-014) is for gold only. Rotating Burnout Furnace #13 (77-0145) is for both gold and platinum.
ACCURATE TEMPERATURE
When your burnout furnace is at the temperature of 650 degrees centigrade, open the door and look at the color of the heating coils. If they are orange/red, the temperature is far greater than the indicated temperature.
Therefore, the part of the flask which faces the coil can get badly overheated & the flasks which are near the coils are at higher temperature than the other flasks.
UNIFORM HEAT TRANSFER
Our RBF (Rotating Burnout Furnace) distributes the heat uniformly due to the minimal difference of temperature between the heater surface and the chamber as well as due to the displacement of air caused by the rotation. In this way, all the flasks are heated at the same temperature regardless of distance from the heating coil.
MINIMAL HEAT LOSS WHILE OPENING THE DOOR
As the door is not wide like normal burnout furnaces, the heat lost is much less and that temperature does not fall much.
VARIABLE POWER HEATING
One burnout cycle can be programmed in 4 steps. Optimum heating power is automatically calculated and applied corresponding to each temperature zone, so that PRECISE TEMP. CONTROL IS ACHIEVED. Low power is for the beginning steps and higher power for the ending steps. Such a careful control has been developed for preventing flasks from the possible overheat at each step.
PLATINUM FLASK
The RBF13 can reach temperature up to 950 centigrade and is ideal for casters who cast both gold & platinum.

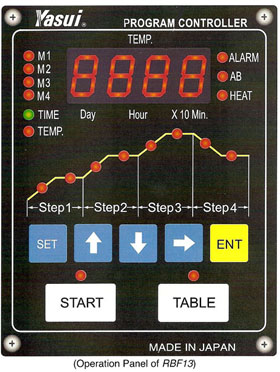

EASY-TO-ACCESS CONTROL PANEL
Various information is obtained from the control panel, such as present step no., present burning out temperature inside the furnace etc.
TIMER
Burnout cycle will perfectly proceed by the preset time. For instance, if you plan to start CASTING AT 9:00 AM next day, flasks would be ready at 9:00 AM by presetting time today. Maximum preset time is 9 days 23 hours 50 minutes.
PROGRAM MEMORY
4 kinds of different burnout cycles can be memorized on the controller.

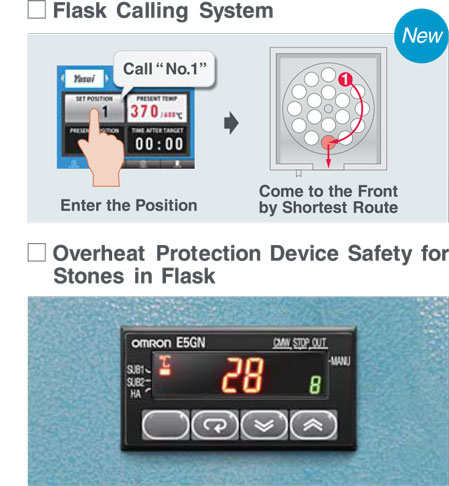

OVERHEAT PROTECTION DEVICE SAFETY FOR STONES IN FLASK
The value of precious stones inside the furnace is beyond comparison with the value of the furnace. RBF13’s overheat protection device on the front panel can prevent the precious stones safely from overheating. Should the temperature exceed the setting value, the power is immediately shut off.

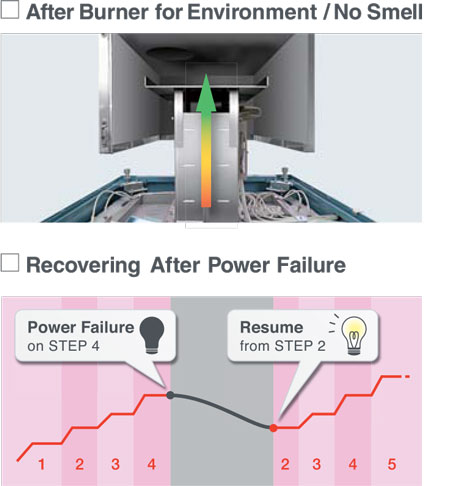

MEASURES FOR POWER FAILURE
On power failure during burnout cycle time under automatic burnout mode, present burnout STEP is memorized. And when power is recovered, the burnout cycle can be automatically restored and started from the step number where power failure occurred.
| Model | RBF13+ |
| Power | 220V, 50/60Hz, Single Phase |
| Power Consumption | 6KVA (including afterburner) |
| Net Weight | Approx. 210kg (463lb) |

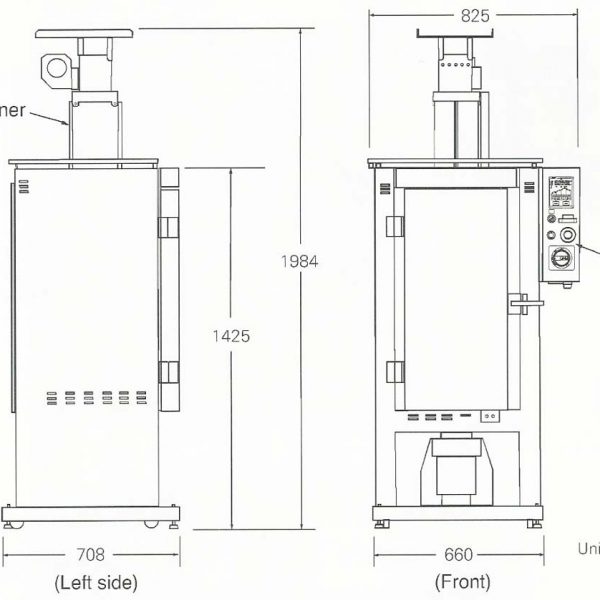

| Dimensions (WxDxH) | 915mm (incl. control box) x 710mm x 2001mm (incl. afterburner) |
| Burnout Temperature | Max. 950°C |
| Turntable | Dia. 330mm x 2 Tables |
| Capacity | 13 Flasks (Dia. 101mm), 15 Flasks (Dia. 89mm), 19 Flasks (Dia. 76mm) |
| Max. Height Of Flask | 230mm (H) |
